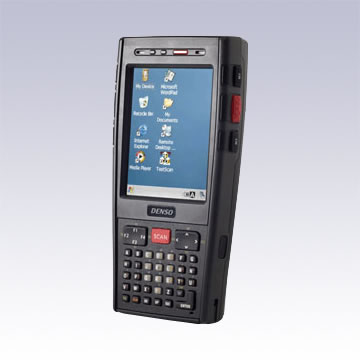

DENSO BHT-700 Series Handheld Terminal

Overview:

Featuring new technology software for improved reading of high density (narrow bars/spaces), poorly printed (coarse printing) barcode. A scanning increased depth of field with snappy scanning response improves operator efficiency.

Specifications

Models			BHT-710BB-CE	BHT-710BWB-CE	BHT-760BWBG-CE
Controller	OS		Windows CE 5.0 Professional
	CPU		PXA270 624MHz
	Memory	RAM	128MB
	Memory	Flash ROM	128MB
Display	Size		240×320 dots (QVGA)
	Display Device		Liquid crystal dot matrix color display
	Frontlight		LED Type
Scanner	Pointer		Advanced Scanning System
	Scanning area		700mm
	Readable code		EAN-13/8,UPC-A/E(with add-on),Interleaved 2 of 5, CODEBAR(NW-7),CODE39,CODE93,CODE128, (EAN-128),STF,MSI,RSS
	Resolution	Barcode	0.125mm
	Reading conformation		2-Color LED(red, blue),Vibrator
Keyboard	Keyboard Number of keys		30 Keys(numeric keypad)+3 Trigger Keys	45 Keys(alpha keypad)+3 Trigger Keys
Communications	Optical I/F	System	Infra-red(IrDA-SIR Ver.1.2[Low Power] compliant)
		Speed	115.2kbps MAX.
		Range	Approx 0.15m
	Wireless I/F	Standard	---	IEEE 802.11 a/b/g
		Frequency	---	802.11a:5GHz 802.11b/g:2.4GHz
		Transmission distance	---	802.11a: Indoors:Approx 50m 802.11b/g: Indoors:Approx 175m, Outdoors:Approx 350m
		Modulation method	---	OFDM,DSSS
		Communication Speed	---	802.11b: 11/5.5/2/1 Mbps, 802.11a /g: 54/48/36/24/18/12/9/6 Mbps
		Security	---	WEP40.128,WPA-PSK(TKIP),WPA2-PSK(AES)WPA-1x(TKIP/EAP-TLS,PEAP),WPA2-1x(AES/EAP-TLS,PEAP),802.1x(EAP-TLS,PEAP)
	Bluetooth		Bluetooth Ver 2.0 compliant
	WAN		---		EDGE(GSM/GPRS)
	Cradle I/F		RS-232C/USB client
	Audio I/F		Microphone, Earphone, Receiver
Power supply	Main power		Lithium ion battery cartridge
Power supply	Operation hours		Approx 8 hours
Auxiliary functions			Clock,beeper,vibrator, low battery indication
Environment requirements	Operating temperature range		-10°C to 50°C
	Water splash resistance		IP54
	Drop resistance strength		1.2m(1.5m×Multiple)
Weight			Approx 320g	Approx 330g	Approx 410g
