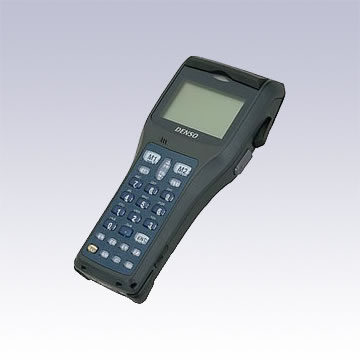

DENSO BHT-300Q Series 2D Handheld Terminal

Overview:

· Outstanding Scanning Performance
· Superior Operability
· Wide Range of Scanning Features
· Industry-leading impact resistance and superior operating environment features
· Passes IEC International Standards Protection Class IP54 and reliably shuts out water and dust
· Largest screen in its class
· Enhanced Feautures

Specifications

Model			BHT-304Q	BHT-304QB	BHT-304QW	BHT-304QWB
Memory			18MB(User area appox. 12.5MB)	18MB(User area appox. 12MB)	18MB(User area appox. 12MB)	18MB(User area appox. 11.7MB)
Display	Display device		Liquid crystal dot matrix display (Monochrome)
	Size		132 X 72 dots
	Character type	Alphanumeric & Katakana	22 cha. x 9 lines
		Kanji characters (standard)	8 cha. x 4 lines
		Kanji characters(small)	11 cha. X 6 lines
Scanner	Scanning system		Area sensor
	Scanning area		59mmx44mm (with a distance of 110 mm from label)
	Readable codes	2-dimensional codes	QR Code, Micro QR Code, PDF417, Micro PDF, MaxiCode, DataMatrix, EAN, UCC Composite
	Readable codes	Bar codes	EAN-13/-8(JAN-13/-8), UPC-A/-E,UPC/EAN (with add-on codes), Interleaved 2 of 5,CODABAR (NW-7), CODE39, CODE128 (EAN-128), RSS
	Resolution	2-dimensional codes	0.25mm
	Resolution	Bar codes	0.15mm
	Focusing point		110mm
	Marker		Area marker
	Reading confirmation		2-color LED (red green), buzzer, vibrator
Keyboard	Number of keys		26 keys (incl, Power switch) + 2 trigger keys
Communications	Optical I/F	Communication system	Infrared (IrDA-SIR 1.2 compliant)
		Communication speed	115.2kbps MAX.
		Transmission distance	Approx. 0.15m
	Wireless I/F	Standard	-	-	IEEE802.11b
		Wavelength	-	-	2.4GHz
		Transmission distance	-	-	Indoors: Approx.75m,Outdoors: Approx.200m
		Modulation method	-	-	Spread spectrum method (Direct sequence spread)
		Communication speed	-	-	11/5.5/2/1Mbps (Automatic Switching)
		Security	-	-	Refer to attached table.
	Bluetooth		-	Bluetooth Ver1.2 Compliant Class2	-	Bluetooth Ver1.2 Compliant Class2
	Connector I/F		RS232C(115.2kbps MAX.)
Power suply	Main power		Lithium ion battery cartridge
Power suply	Operation hours		Approx 48hours	Approx 26hours	Approx 26hours	Approx 13 hours
Auxiliary functions			Calendar clock, Buzzer, Vibration, Resume, Low-battery indication, Remote wake-up
Environment equirements	Operating temperature		-5°C to 50°C
	Drip-proof		IP54
	Shock Resistance		Dropped from 1.2m above concrete floor, on all 6 faces,5 times each(total 30 times)
Weight			Approx.235g	Approx.245g	Approx.250g	Approx.265g
