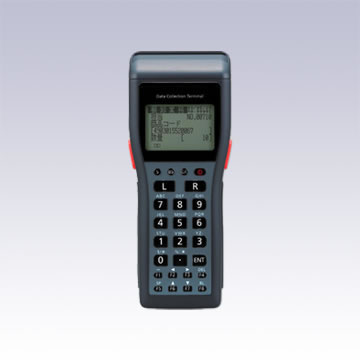

CASIO DT-930 Laser-Scanner Terminal for retail applications
Overview:
· Operation life up to 200 hours
· Keypad with background illumination
· Dust and water-splash proof IP54 level (in compliance with IEC60529)
· Fall protection up to 1.8 m
· 32-Bit RISC Processor
· Available in different model versions
Specifications
| Processor | |
| CPU | SH1 (32-Bit RISC-CPU) |
| Memory | |
| RAM | 4 MB |
| F-ROM | 16 MB |
| Scanner | |
| Readable barcode width | 60 - 390 mm |
| Readable distance | 0 to 450 mm |
| Resolution | min. 0.127 mm |
| Readable symbologies | EAN, UPC-A/E, CODABAR, ITF, Code39, Code93, Code128, MSI, IATA, Industrial 2 of 5 |
| Scanning speed | 100 scans/sec. |
| Additional function | Laser swing angle control |
| Display | |
| Resolution | 128 x 64 dots |
| Font sizes | 6, 8 and 10 point |
| max.lines/columns | 10 x 21 characters |
| Backlight | yes (LED) |
| Status-LED | yes (3-colour LED) |
| Buzzer | Sound level 75 db or more |
| Vibration | yes |
| Keypad | |
| Type | numeric, alphanumeric, CLR, BS, S, Multifunctional buttons (left and right), F1-F8, Power button |
| Number of keys | 28 |
| Additional | ergonomic |
| Interface | |
| Infrared | IrDA Vers. 1.1 |
| Bluetooth® | V1.2 |
| Power | |
| Main power supply | 2 x alkaline batteries (AA size)or lithium-ion battery pack |
| Back-up power supply | Lithium backup cell, Memory backup of up to one month |
| Operating period | 200h (with AA size alkaline batteries) 50h (with lithium-ion battery pack) |
| Energy management | |
| Auto off | yes, adjustable |
| Auto light off | yes, adjustable |
| Low battery warning | yes |
| Emergency off | yes |
| Environment | |
| Operating temperature | -20°C to +50°C |
| Water splashproof | Dust and water-splash proof: IP54 level (in compliance with IEC60529) |
| Drop durability | 1.8 m |
| Dimensions/Weight | |
| Dimensions (L x W x H) |
approx. 173 x 70 x 32 mm |
| Weight | DT-930M50E: approx. 225g DT-930M51E: approx. 210g |
