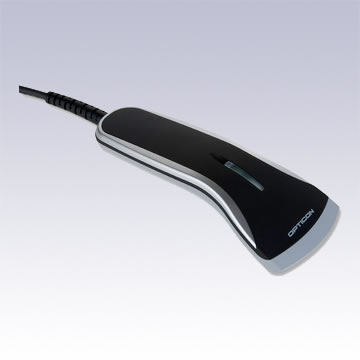

Opticon OPR-2001
Overview:
This sleek barcode reader features a compact and stylish yet lightweight design. The OPR2001's uniquely ergonomic design and comfortable housing not only makes it a natural fit to your hand, but also gives it a comfortable feel.
The OPR2001 features a speed of 100 scans per second. This high performance laser scanner provides a fast and accurate scan, even when barcodes are printed with low contrast.
Easy scanning
The integrated auto trigger mode together with the dedicated stand enables hands-free operation. Available in black and white, the OPR2001 uses very little counter space and blends well with other office furniture. This ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete.
Plug & play
Available in USB, RS232 and Keyboard Wedge connectivity options, the OPR2001 can easily be integrated into any host computer system as a plug and play device.
| Operating indicators | |
| Visual | 1 LED (red/green/orange) |
| Non-visual | Buzzer |
| Operating keys | |
| Entry options | 1 scan key |
| Communication | |
| RS232 | DB9 PTF connector with external power supply |
| Keyboard Wedge | MiniDIN6 F/M connector |
| USB | Ver. 1.1, HID/VCP, USB-A connector |
| Power | |
| Voltage requirement | 5V ± 10 % (Keyboard Wedge and USB), 6V (min. 4.5, max. 6.5V) (RS232) |
| Current consumption | Max. 150mA |
| Barcode scanner Optics | |
| Light source | 650 nm visible laser diode |
| Scan method | Bi-directional scanning |
| Scan rate | 100 scans/sec |
| Trigger mode | Manual, auto-trigger, stand detection |
| Reading pitch angle | -35 to 0°, 0 to +35° |
| Reading skew angle | -50 to -8°, +8 to +50° |
| Reading tilt angle | -20 to 0°, 0 to +20° |
| Curvature | R>15 mm (EAN8), R>20 mm (EAN13) |
| Min. resolution at PCS 0.9 | 0.127 mm / 5 mil |
| Min. PCS value | 0.45 |
| Depth of field | 40 - 500 mm / 1.57 - 19.69 in (res. 1.0 mm / 39 mil), 20 - 350 mm / 0.79 - 13.78 in (res. 0.5 mm / 20 mil), 20 - 200 mm / 0.79 - 7.87 in (res. 0.25 mm / 10 mil), 20 - 100 mm / 0.79 - 3.94 in (res. 0.15 mm / 6 mil), 30 - 70 mm / 1.18 - 2.76 in (res. 0.127 mm / 5 mil), at PCS 0.9, Code 39 |
| Supported Symbologies | |
| Barcode (1D) | JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey |
| Postal code | Chinese Post, Korean Postal Authority code |
| Durability | |
| Temperature in operation | -5 to 50 °C / -23 to 122 °F |
| Temperature in storage | -20 to 60 °C / -4 to 140 °F |
| Humidity in operation | 20 - 85% (non-condensing) |
| Humidity in storage | 10 - 90% (non-condensing) |
| Ambient light immunity | Fluorescent 3,000 lx max, Direct sun 50,000 lx max, Incandescent 3,000 lx max |
| Drop test | 1.5 m / 5 ft drop onto concrete surface |
| Vibration test | 10 - 100 Hz with 2G for 1 hour |
| Protection rate | IP 42 |
| Physical | |
| Dimensions (w x h x d) | 56 x 151 x 31 mm / 2.20 x 5.94 x 1.22 in |
| Dimensions stand (w x h x d) | 100 x 175 x 127 mm / 3.94 x 6.89 x 5.00 in (excl. scanner) |
| Weight body | Ca. 60 g / 2.1 oz (excl. cable) |
| Weight stand | Ca. 115 g / 4.1 oz |
| Case | ABS, Black, chrome stand |
| Regulatory & Safety | |
| Product compliance | CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II |
