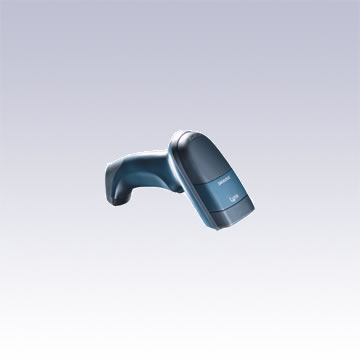

Featuring omnidirectional reading on a wide range of symbologies, the Lynx BT reader decodes the most common 1D and 2D codes including stacked and postal codes no matter how the code is oriented. It is also able to capture signatures or images of objects such as shipping damage documentation To increase efficiency, it can also decode all the codes found in the captured image. The captured image can be processed on board, or downloaded in different formats (.bmp, .jpg, .tif) for image processing on the host side. Up to 4 acquisition options allow image manipulation: zoom (from 20% to 200%), contrast, brightness (±100%) and windowing.



Aiming at the image to be captured is easy and intuitive, with the double-click trigger that enables the Datalogic 5-dot aimer, marking the four corners and center of the reading area.



The base station/charger is equipped with a multi-standard interface for connection to the host via USB (COM and Wedge Emulation), RS-232 or Wedge Emulation. VisualSetup™, the software tool included in the package, allows easy configuration of all the parameters to personalize the reader for any application through a RS-232 interface, as well as providing a quick view of the downloaded images.



Cordless Communications

• Bluetooth Wireless Technology
• Protocol
• Bluetooth 1.2 Certified Class 2
• Radio Frequency
• 2.40 to 2.48 GHz
• Radio Range (Open Air)
• 10.0 m / 32.8 ft



Decoding Capability

• 1D / Linear Codes
• Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
• 2D Codes
• Data Matrix
• MaxiCode
• QR Code
• Postal Codes
• Australian Post
• China Post
• Japanese Post
• KIX Post
• Planet Code
• Postnet
• Royal Mail Code (RM4SCC)
• Stacked Codes
• EAN/JAN Composites
• GS1 DataBar Composites
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional
• MicroPDF417
• PDF417
• UPC A/E Composites



Electrical

• Battery
• Battery Type
• Lithium-Ion, 2100 mAh
• Charge Time
• External Power
• 4 Hours
• Reads per Charge
• 10,000
• Cradle Indicator LEDs
• Battery Charging (Red)
• Charge Completed (Green)
• Power/Data (Yellow)
• Current
• Operating (Typical)
• 110 mA
• Charging
  580 mA
• Input Voltage
• 12 VDC



Environmental

• Ambient Light
• 0 - 100,000 lux
• Drop Resistance
• Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface
• Humidity (Non-Condensing)
• 0 - 95%
• Particulate and Water Sealing
• IP51
• Temperature
• Operating
• 0 to 55 °C / 32 to 131 °F
• Storage/Transport
• -20 to 70 °C / -4 to 158 °F



Interfaces

• Keyboard Wedge
• RS-232
• USB



Physical Characteristics

• Colors Available
• Blue/Black
• Dimensions
• 20.3 x 11.7 x 6.9 cm / 8.0 x 4.6 x 2.7 in
• Weight
• 335.0 g / 11.8 oz



Reading Performance

• Image Capture
• 320 x 240 CIF
  8 Bit Greyscale
• 640 x 480 VGA
  8 Bit Greyscale
• Graphic Formats
• BMP, JPEG, TIFF
• Imager Sensor
• 2D CMOS Array
  640 x 480 pixels
• Light Source
• Aiming
• 630 - 680 nm VLD
• Illumination
• LED Array 630 - 670 nm
• Print Contrast Ratio (Minimum)
• 23%
• Reading Angle
• Pitch
• +/- 35°
• Roll (Tilt)
• 360°
• Skew (Yaw)
• +/- 40°
• Reading Indicators
• Beeper (Adjustable Tone)
• Good Read LED
• Resolution (Maximum)
• 1D Linear
  0.130 mm / 5 mils
• Data Matrix
  0.168 mm / 6.6 mils



Reading Ranges - Typical Depth of Field

• Minimum distance determined by symbol length and scan angle.
• Printing resolution, contrast, and ambient light dependent.
• LYNX BT432
• 5 mils
• 8.0 to 15.0 cm / 3.1 to 5.9 in
• 6.6 mils PDF
• 7.0 to 19.0 cm / 2.7 to 7.5 in
• 10 mils Data Matrix
• 7.5 to 16.5 cm / 2.9 to 6.5 in
• 10 mils PDF
• 4.5 to 24.0 cm / 1.7 to 9.5 in
• 13 mils
• 7.5 to 24.5 cm / 2.9 to 9.6 in
• 15 mils Data Matrix
• 6.0 to 22.0 cm / 2.3 to 8.7 in
• 20 mils
• 8.0 to 33.0 cm / 3.1 to 13.0 in
• 20 mils Postnet
• 11.5 to 15.0 cm / 4.5 to 5.9 in
• LYNX BT432 E
• 3 mils
• 5.0 to 7.5 cm / 1.9 to 2.9 in
• 3 mils PDF
• 5.0 to 8.0 cm / 1.9 to 3.1 in
• 5 mils
• 4.0 to 9.5 cm / 1.6 to 3.7 in
• 5 mils Data Matrix
• 5.0 to 7.5 cm / 1.9 to 2.9 in
• 10 mils Data Matrix
• 4.5 to 10.5 cm / 1.7 to 4.1 in
• 10 mils PDF
• 4.0 to 13.0 cm / 1.6 to 5.1 in



Safety & Regulatory

• Agency Approvals
• The product meets necessary safety and regulatory approvals for its intended use.
• The Quick Reference Guide for this product can be referred to for a complete list of certifications.
• Environmental Compliance
• Complies to China RoHS
• Complies to EU RoHS
• Laser Classification
• Caution Laser Radiation - Do not stare into beam
• IEC 60825 Class 2
• LED Classification
• IEC 60825 Class 1 LED
