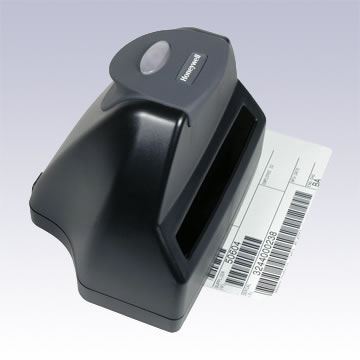

HHP QC890 Barcode Verifier
Overview:
The integrated solution to bar code symbol verification, the QC890 Verification System consists of the optical input device and the Quick Check® ImageData (QCID) graphical user interface.
From a global leader in Verifi cation comes the Quick Check® 890 Verifi cation System – the newest addition to the well-known and respected Quick Check family of products.
The first in a new class of Quick Check Linear Verifi ers, the QC890 product was built to deliver world-class performance for a broad range of market applications.
Featuring the ultimate balance of performance, durability, ergonomics, and connectivity solutions, the QC890 delivers years of dependable linear bar code verifi cation for applications in the retail supply chain, healthcare, transportation, and industrial markets.
The first linear bar code verifi er to earn the Adaptus® Imaging Technology brand, the new QC890 is powered by Adaptus Imaging 5.0, delivering breakthrough linear imaging performance and versatility. Advanced signal processing improves performance and accuracy needed for ISO Verifi cation measurements.
A reliable, out-of-box solution coupled with fl exible confi gurations, makes the QC890 the ideal choice for customers who appreciate best-in-class value in a verifi er.
| Dimensions | |
| Height: | 6.0 in. (15.3cm) |
| Width: | 6.9 in. (17.6cm) |
| Depth: | 5.5 in. (13.9cm) |
Mechanical |
|
Standard Hardware |
|
| Confi guration: | Optical Input Device (OID), interface, power supply |
| Optical Input Connector: | 9-pin plastic squeeze-to-release male |
| I/O Connector: | 10-pin modular (allows for I/O communications with computer) |
Beeper: |
For audible user feedback of verification results |
| LEDs: | Red and green LEDs indicate charge state of the internal battery, verification results, and host communication state |
System Requirements |
|
| Windows: | · Microsoft Windows 98 Second Edition, 2000, Windows NT 4.0 or XP operating system · Pentium 100Mhz (recommend 500Mhz and up) · 64 MB RAM (recommended 128 MB and above) · Application: 5 MB available hard disk space · .NET framework: 110 MB of hard disk space required, 40 MB additional hard disk space required for installation (150 MB total) · Any available COM or USB port or Bluetooth (supports SPP profiles) · Microsoft compatible mouse |
| Windows Mobile 2003: | · Windows CE .NET 4.2 or Pocket PC 2003/2003 SE · ARM4 processor · 64 MB RAM (2MB RAM for the application) · Any available COM port, Bluetooth (supports SPP profiles) · WN 5.0 minimum 10mb |
| Optical | |
Sensor: |
Linear CCD imager, bi-directional scanning |
| Test Aperture: | · 3, 5, 6, and 10 mil internal (automatic and manual configuration options) |
Wavelength: |
660 nm (internal optics) |
Read/Scan Width: |
5.3 in. (13.5cm) including quiet zones/light margins |
Environmental |
|
Operating Temperature: |
50° to 104°F (10° to 40°C) |
| Storage Temperature: | 32° to 104°F (0° to 40°C) |
| Relative Humidity: | 25% to 80% @ 40°C non-condensing |
Symbologies: |
EAN/UPC with addenda, Code 39 (1-49 characters), Interleaved 2 of 5 (2-78 characters), Codabar, Code 128 (1-70 characters), MSI (1-50 characters), Code 16K (individual rows), Code 49 (individual rows), Code 93, Code 11, Regular 2 of 5 (discrete/ industrial 2 of 5), IATA 2 of 5 (straight 2 of 5), GS1 DataBar (RSS), Telepen, PDF417, MicroPDF417, and Unrecognized |
| Interfaces: | RS-232, Bluetooth® 1.2, (Class 2) (10 meter range), USB 1.1 (2.0 compatible) |
| Applications: | GS1 - General Specification, AIAG-B4, AIAG-B10, GM1724A, GM1724B, GM1724C, GM1737, HIBCC Provider, HIBCC Supplier, ISBN, ISBT-128 |
| Multiple Language Support: | English, Chinese, Japanese, German, French, Portuguese, Spanish |
