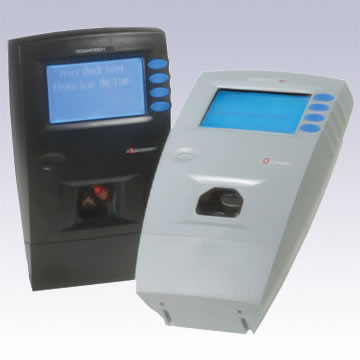

The Discovery SG-20 is a second-generation customer information terminal.
|
| Power supply voltage |
90-264 V ac 50/60 Hz |
|
| Power consumption |
10 Watt max |
|
| Interfaces |
RS232, RS422, RS485 and optional Ethernet or WiFi. |
|
|
| Light source |
Visible laser diode (630 – 670 nm) |
|
| Depth of field |
250 mm (= maximum reading distance) |
|
| Scan pattern |
Omnidirectional |
|
| Bar code types |
EAN/UPC/JAN + Add-on, code 32 (Ital. Pharmacode) |
|
|
Code 128, EAN 128, Code 39 (+ full ASCII), Code 93, |
|
|
|
| Dimensions |
298 (h) x 181 (w) x 100 (d) mm |
|
| Display |
Back Lit STN graphical 240x128 pixels |
|
|
| Window |
Anti-reflex coated |
|
|
| Operating temperature |
0°C … 40°C |
|
| Humidity |
20% .. 95% RH (non condensing) |
|
|
| Laser Safety |
IEC 825-1 (1993) Class I, U.S. 21CFR1040 Class IIa |
|
| Separator Box/ Network Box - Classic version |
|
|
|
| Power supply |
4,65 – 5.5 Vdc |
|
|
| Interfaces |
RS-232: optical separation up to 1600V |
|
|
RS-422: optical separation up to 1600V |
|
|
RS-485: optical separation up to 1600V |
|
|
| Dimensions |
30x86x125 mm (hxwxd) |
|
|
|
| Operating temperature |
0°C … 40°C |
|
| Humidity |
20% .. 95% RH (non condensing) |
|
| Separator Box/ Network Box – Version 2 |
|
|
| (version 2 is fully backward compatible with the classic version) |
|
|
|
| Power supply |
5 Vdc ± 5% (double powerplug option) |
|
|
| Interfaces |
RS-232: optical separation up to 1600V |
|
|
(double connector option). |
|
|
RS-422: optical separation up to 1600V. |
|
|
RS-485: optical separation up to 1600V. |
|
|
| Dimensions |
25x136x app. 89 mm (hxwxd) |
|
| Housing |
Anodized aluminum |
|
|
| Operating temperature |
0°C … 40°C |
|
| Humidity |
20% .. 95% RH (non condensing) |
|
