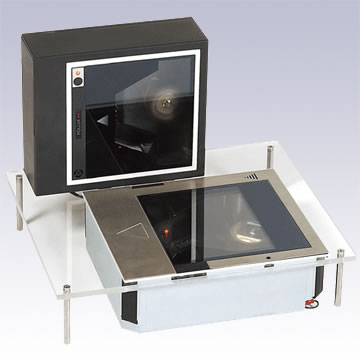

GEMINI G-5040

Overview:



The Scantech Gemini is a unique modular bi-optic solution. With the guarantee of two fully optimised fly-by scan patterns, the Gemini combines the best out of two worlds: The Pollux P-4010 for vertical scanning and the Castor C-5010 for horizontal scanning. Designed from a retailers point of view, the Gemini dual plane scanning solution offers a number of benefits, including: reduced operator fatigue, increased productivity, a reduction in checkout time and improved customer service.

Specifications
Physical
depth 70 mm
width 210 mm
length 183 mm
weight 1,2 kg
depth 75 mm
width 205 mm
length 240 mm
weight 2,5 kg
Dual interfaces RS232C - OCIA • IBM RS485 - KBW
Electrical power supply voltage: 100 - 240 V ac, 50/60Hz
Optical
light source visible laser diode 670 nm 10 scan directions, 35 lines scan pattern
scan rate 3500 scans/second
depth of scan field 300 mm
Operating environment 0°C to 40°C • relative humidity to 95% (non condensing)
Supported codes EAN/UPC/JAN including AddOn • code 128 • EAN 128 code 39 • code 32 • codabar • interleaved 2/5
Compatibility EAS compatible
Safety
The Gemini G-5040 complies with laser safety IEC 825-1 (1993) Class I,U.S. 21CFR1040 Class IIa
electrical safety EN 60950 (second edition), UL1950 (third edition), c-UL (according CSA22.2.950-95)
radio and tv interference EN 55022 Class B // Class A (1994), FCC part 15 Class A (1992)
radio frequency immunity EN 50082-1 (1992)
harmonic current emissions EN 61000-3-2 (1995)
