Economical

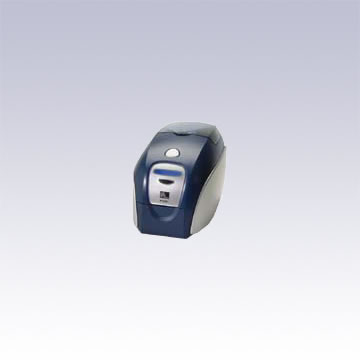

Modern design, high-tech materials and new electronics make the P120i the most affordable dual-sided card printer.

Versatile
Compact and lightweight for use anywhere; Print dual-sided or single-sided, full-color or monochrome; Automatic card feeder or CardSenseTM single-card feed; Optional magnetic stripe encoding.

Easy-to-Use
Load-N-GoTM ribbon cartridge with integrated card cleaning roller; i SeriesTM automatic ribbon detection and printer configuration; Backlit LCD message display; Translucent card input cover; Tool-less printhead replacement

General Specifications
Integrated card feeder and flipper
Load-N-GoTM drop-in ribbon cartridge
16-digit LCD display
Windows® Drivers: 2000, XP, Server 2003; Vista compatible
Two (2) year warranty on card printer and original printhead (unlimited passes) - if shipped on or after January 1, 2007
One (1) year warranty applies to printers shipped prior to January 1, 2007

Printing
Color dye sublimation or monochrome thermal transfer printing
30 seconds per card full-color single-sided (YMCKO)
40 seconds per card full-color dual-sided (YMCKOK)
300 dpi (11.8 dots/mm) print resolution

Bar Codes
Code 39, Code 128 B & C with & without check digit
2 of 5 & 2 of 5 Interleaved
UPC-A, EAN 8 & EAN 13
PDF-417 2D bar code and other symbologies can be printed via Windows drivers

Card Specifications
Types: PVC, PVC Composite
Card width/length: ISO CR-80-ISO 7810, 2.12" (54mm) x 3.38" (86mm)
Magnetic Stripe-ISO 7811
Smart Card-ISO 7816
Card thickness: 30 mil (.76mm)
Card feeder capacity: 100 cards (30 mil)
Card output hopper capacity: 45 cards (30 mil)

Ribbon Specifications
Load-N-GoTM ribbon cartridge with integrated card-cleaning roller
i Series ribbon information technology
YMCKO: 200 cards/cartridge
YMCKOK: 165 cards/cartridge
Monochrome: 1000 cards/cartridge in black, blue, or white

Communications Interface
USB 1.1 (cable included)
Built-in 10/100 Ethernet (factory installed only)

Mechanical
Width: 7.9 in (201mm)
Depth: 12.9 in (328mm)
Height: 9.25 in (235mm)
Weight: 10 lbs (4.5kg)

Electrical
100 ~ 240 Volts AC, 50 ~ 60 Hz (auto switching)
8MB image memory standard
FCC Class A, CE, UL and CUL approved

Environmental
Operating Temperature: 60°F to 86°F (15°C to 30°C)
Operating Humidity: 20% to 65% non-condensing
Storage Temperature: 23°F to 158°F (-5°C to 70°C)
Storage Humidity: 20% to 70% non-condensing
Ventilation: Free air

Options
CardSenseTM single card-feed mode
Magnetic encoder (30 mil cards only), 3 track HiCo/LoCo (Must be specified at the time of order)
Starter Kit (200 - 30 mil PVC cards and 1YMCKOK ribbon)
Cleaning Kit (4 print engine and 4 feeder cleaning cards)
