Overview:

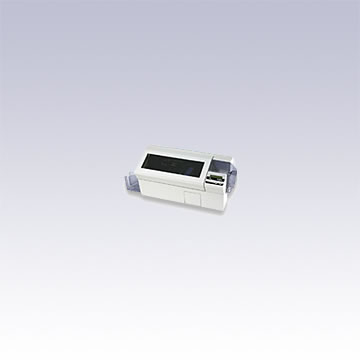

The Zebra P430i is part of the latest generation of Zebra’s most popular card printer family, with tens of thousands of printers installed worldwide. Designed and built for demanding environments, the P430i delivers reliability and performance for high volume card production.
Expansion options for networking and card encoding give the P430i the flexibility to meet your specific requirements. Affordable and easy to use, the Zebra P430i is the new leader in dual-sided performance card printers.
Innovative and Easy to Use
Easy plug and play USB or USB with Ethernet interface simplifies configuration
Printhead bracket opens wide for easy ribbon access
16 character LCD screen for printer status and error reporting messages
Translucent card cover allows you to see when supplies are running low, and blank cards can be added while printing
Reject bin holds cards that fail to encode correctly
Encoding and Network Connectivity Expansion Options
UHF Gen 2 RFID encoder
3 track magnetic stripe encoding (HiCo/LoCo)
Smart card contact and contactless encoders
Built-in 10/100 Ethernet for printer networking
Reliable and Flexible
Print dual-sided or single-sided
Revolutionary angled card feeder design means fewer rejected cards
Self aligning printhead design for consistently uniform print quality
High Performance
Vibrant, true-to-life colors
High volume card throughput
Large capacity card feeder available
i Series* Functionality
Automatic color optimization and driver configuration
Enhanced ribbon formulation for optimal color output
Ribbon image counter and ribbon low notification
General Specifications
16character LCD display
Windows® Drivers: 2000, XP, Server 2003; Vista compatible
Bi-directional driver communication
Two (2) year warranty on card printer and original printhead (unlimited passes) - if shipped on or after January 1, 2007
One (1) year warranty applies to printers shipped prior to January 1, 2007
Printing
Color dye sublimation or monochrome thermal transfer printing
102 cards per hour full color dualsided (YMCKOK)
130 cards per hour full color singlesided (YMCKO)
300 dpi (11.8 dots/mm) print resolution
Bar Codes
Code 39, Code 128 B & C with & without check digit
2 of 5 & 2 of 5 Interleaved
UPCA, EAN 8 & EAN 13
PDF417 2D bar code and other symbologies can be printed via Windows drivers
Card Specifications
Types: PVC, PVC Composite, UHF Gen 2 RFID, Adhesive backed
Card width/length: ISO CR80ISO 7810, 2.12" (54mm) x 3.38" (86mm)
Magnetic Stripe ISO 7811
Smart Card contact and contactless
Card thickness: 10 mil (.25mm) to 60 mil (1.524mm) (+/10%)
Card feeder capacity: 100 cards (30 mil) or 220 cards (30 mil)
Card output hopper capacity: 100 cards (30 mil)
Ribbon Specifications*
iSeriesTM Printers require the use of iSeries ribbons for full color printing
YMCKOK: 170 cards/roll
YMCKO: 200 & 330 cards/roll
1/2 Panel YMC Full KO: 450 cards/roll
KdO: 500 cards/roll
KrO: 500 cards/roll
Overlay varnishes: Clear and Hologram: 350 cards/roll
Monochrome: 1500 (Black) & 1000 cards/roll
Monochrome colors: black, red, blue, green, silver, gold, white and scratch-off grey
Communications Interface
USB 1.1 (USB 2.0 compatible) cable included
Built-in 10/100 Ethernet (optional)
Mechanical
Width: 26 in (660 mm)
Depth: 9.4 in (239 mm)
Height: 10.1 in (256 mm)
Weight: 20 lbs (9.1 kg)
Electrical
100 ~ 240 Volts AC, 50 ~ 60 Hz (auto switching)
4 MB image memory standard
FCC Class A, CE, UL, CUL, and CCC approved
Environmental
Operating Temperature: 60°F to 86°F (15°C to 30°C)
Operating Humidity: 20% to 65% non-condensing
Storage Temperature: 23°F to 158°F (5°C to 70°C)
Storage Humidity: 20% to 70% noncondensing
Ventilation: Free air
Options
UHF Gen 2 RFID encoder
Built-in 10/100 Ethernet
Smart card contact ISO 7816 encoder (30 mil cards only)
Smart card MIFARE®/DESFire encoder (30 mil cards only)
Magnetic encoder (30 mil cards only) 3 track HiCo/LoCo
High capacity feeder (220 cards)
Genuine Zebra Supplies
Your choice of card printer supplies is critical. It is a primary factor affecting the reliability and consistency of printing. Genuine Zebra Supplies meet stringent quality standards and are tested for optimum performance with Zebra card printers.
